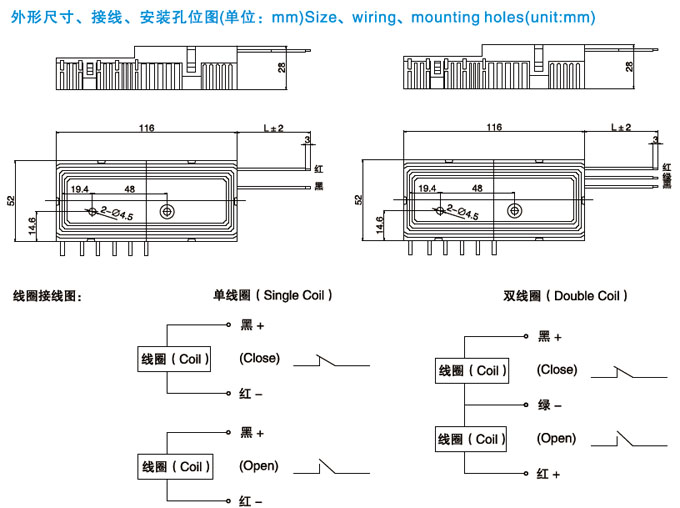

外形尺寸Dimensions(mm)	116×52×28
觸點型式Contact type	3A/3B
觸點材料Contact material	銀合金Ag alloy
最大切換電流Max switching current	100A
最大切換電壓Max switching voltage	110VDC/250VAC
最大切換功率Max switching power	3000W/25000VA
重量（不帶附件）Weight	290g

環境溫度Ambient temperature	-40℃～+70℃
抗振動Vibration resistance	10～55Hz,0.5mm(Double Amplitube)
抗沖擊lmpact resistance	98/S²,11ms
相對濕度R.H	45%～85%
接觸電阻Contact Resistance	≤2.0MΩ(1A/6VDC測試）
絕緣電阻lnsulation resistance	1000MΩ(DC500V)
介質耐壓Dielectric withstanding voltage	觸點與觸點間between contacts:AC 2500VAC,50/60Hz 1Min
	觸點與線圈間between contacts＆coil:AC 6000VAC,50/60Hz 1min
壽命Life times	機械壽命Mechanical life	≥5×105OPS
	電氣壽命Electrical life	≥1×104OPS
環境溫度Ambient temperature
重量Weight	不帶附件約290g Without attachment to about 290g

典型用途Typical uses
     ●智能電度表                                     ●電力復合開關
      ●lntelligent electric meter                     ●Composite power switch
注意事項Matters needing attention
1、 磁保持繼電器出廠狀態為觸點閉合狀態（復位狀態），但因運輸或繼電器安裝時受到?jīng)_擊等因素的影響，可能會改變狀態，因此在使用前（電源接入時）有必要采取措施重新使其復位。
    Magnetic latching relay factory condition for contact closure state,but because carry or installed when subjected to impact,may change state,therefore before use to make its reset.
2、 為了確保磁保持繼電器可靠動作，施加到線圈上的激勵電壓須達到額定值，且脈沖寬度設置須達到動作時間的3倍以上。
    Ln order to ensure the reliability of relay coil voltage,must reaeh value,the pulse width must be 3 times more time.
3、 不帶軟銅編織線的磁保持繼電器，負載引出腳不能錫焊，不能隨意扳動，且不能同時剛性固定兩個引出腳。
Not with braided line relay,the load pin can not solder,not arbitrarily wrenched,two pins and rigid fixation
4、磁保持繼電器是有極性區分的，如果用戶需要的極性與本資料不符，應在訂貨時特別提出。
Magnetic latching relay is polar differentiation,and if the user needs to polarity and the data is inconsistent,should be in order when the special offers.
5、繼電器入廠檢查及使用中應輕拿輕放，防止跌落影響參數。入廠作破壞性檢查的產品要與正常產品嚴格區分標識，不得裝機使用。
Relay incoming inspection should be light-light,do the destructive test of products must be consistent with normal goods isolated and labeled,shall not be used.
